Product Details

Click image to enlarge

• Inputs: 5 analogue; 4 unbalanced, 1 balanced
• Bussed internal construction - audio currents flow in predictable loops
• External floating power supply and optically isolated analogue chassis -- the signal section is not influenced by the power supply and control circuitry
• Balanced and unbalanced outputs. The balanced drivers are capable of driving more than 50 metres of standard screened pair without distortion
• 1 uncontrolled output to feed analogue recording equipment or 2nd-room

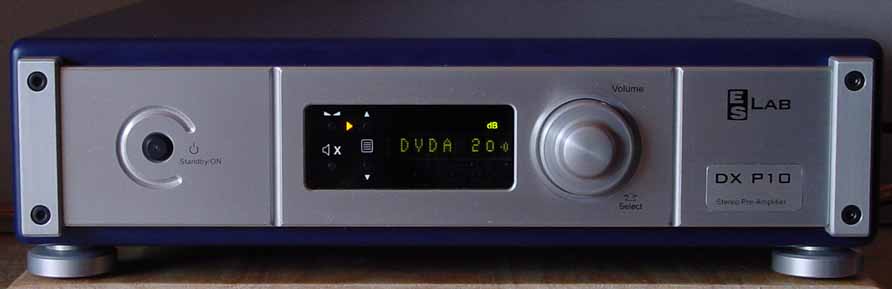

• Intuitive front panel control using a single rotary actuator and dot matrix display
• IR remote control
• Harmonic distortion: < 0.003% - class A amplifier modules - no crossover components - basically means that, like our power amplifiers, it sounds good at all levels
• Transparent
• Slope Control - 1, 2 or 3dB tilt-up or tilt-down. Almost imperceptible changes, but the improvement it can make to some discs and some rooms is dramatic.
• Precision balance control
• Optional sub-woofer control system, even allows precise 1Hz adjustment of turnover. Turnover achieves 9th order filtering!
• Inputs may be "named"
• AV mode, whereby the DX P10 becomes a unity gain buffer, allowing the AV-processor to control the volume
• DAC ready - the control system in the DX P10 is already aware that your future-system may have more than five inputs
